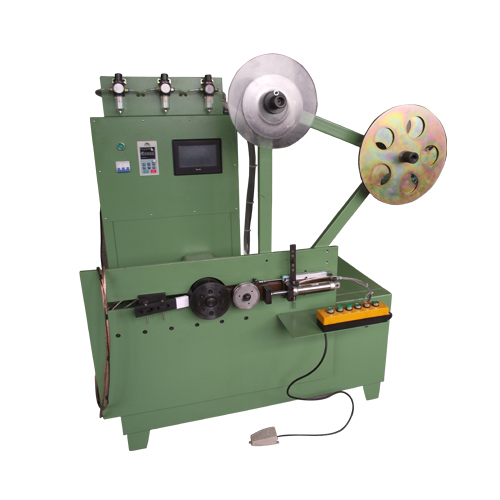

Vertical Semi-Automatic Winding Machine For SWG
Semi-automatic winding machine Suitable for 2" to 18" spiral wound gasket with or without inner ring. PLC control winding size; Digital touch screen interface.
Vertical semi-automatic winding machine for SWG Details
| STYLE | KXT E500B Vertical semi-automatic winding machine for SWG |
| Producing ability |
Can produce 2"-18" SWG with or without inner
ring; Standard package including models for 2"-10" 150# SWG with or without inner ring, other size model on request with extra charge |
| SWG thickness | 4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding) |
| Maximum gasket OD | 500mm |
| Minimum gasket ID | 50mm |
| Gasket OD tolerance | ±0.2mm |
| Spindle speed | 0--200rpm |
| Total power | 8kw |
| Spindle motor power | 1.5kw |
| Welder power | 6kw |
| Power supply voltage | 380V/220V for option, 3 phases |
| Air compressor | 0.6-0.8 MPA |
| Frequency Converter | 2.2G |
| PLC | xinjie |
| Machine measurement | 1400*1050*1650mm |
| Machine net weight | 480kg |
