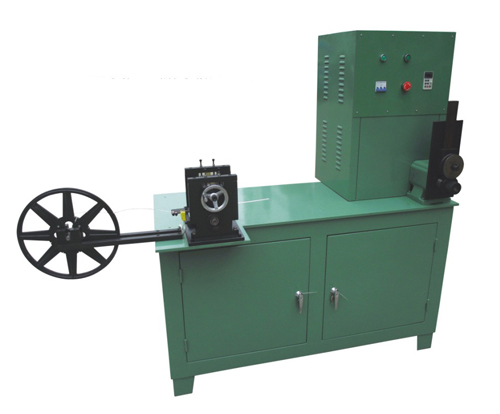

Pre-Shaping Machine For SWG SS Stri

Pre-shape the flat spiral wound gasket SS strip (hoop) into V or W shape before winding.


Send Inquiry


Description
This machine is used to pre-shape the flat spiral wound gasket SS strip (hoop) into V or W shape before winding them. Preshape SS thickness 0.1-0.3mm, SS width 2.5-7.2mm.


Specification as following:
STYLE KXT E1240 Pre-shaping machine for SWG SS strip
Preshaping SS thickness 0.1--0.3mm
Pre-shaping SS width 2.5--7.2mm (Standard machine package include on size of blade, other size for option: 2.5V 3.2V 4.5V 6.4V 7.2V 2.5W 3.2W 4.5W 6.4W 7.2W)
Total power 1.5kw
Spindle motor power 0.75kw
Frequency Converter 2.2G
Power supply voltage 380V/220V as request,3phases
linear speed 0--12m/s
Machine measurement 1800*820*1600mm
Machine net weight 300kg
