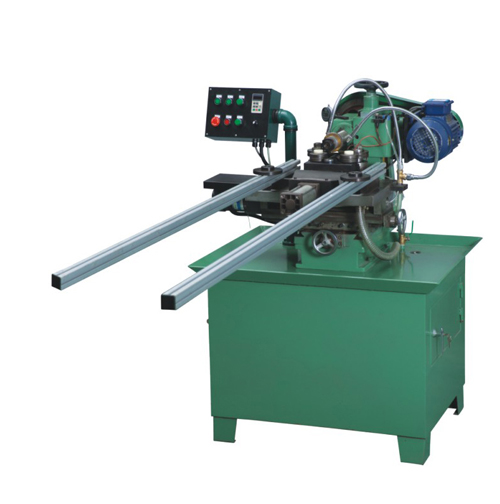

Kammprofile Gasket Machine
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.
| Specification as following: | |
| STYLE |
KXT E1300 Kammprofile gasket machine |
| Gasket thickness | 3 -- 4mm |
| Gasket width | 10--50mm |
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 280mm |
| type of tooth | 1.5mm or 1.0mm pitch tooth, or wave tooth |
| Total power | 4kw |
| Spindle motor power | 1.5kw |
| Spindle speed | 0--1200 rpm |
| Feed motor power | 0.4kw |
| Feed linear speed | 0--20mm/s |
| Frequency Converter | 2.2G 0.4G |
| Power supply voltage | 380V/220V, 3phases, for option |
| Air compressor | 0.6-0.8 MPA |
| Machine measurement | 800*1000*1360mm |
| Machine net weight | 500kg |
