Products

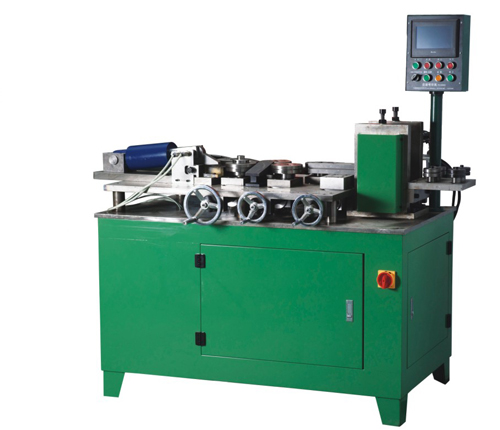

Automatic Ring Bending Machine for SWG IR and OR

Bending Ring width:6mm--60mm, ring size:200-3000mm; PLC perimeter control, automatic cutting.


Send Inquiry


Description
Specification as following:
STYLE KXT E2000D-2 KXT E1000D-2
Bending Ring thickness 2mm, 3mm, 4mm 2mm, 3mm, 4mm
Bending Ring width 6mm--60mm 6mm--20mm
Maximum ring OD 3000mm 1000mm
Minimum ring ID 200mm 120mm
Total power 6kw 6kw
Servo motor power 3kw 3kw
Main motor power 2.2kw 2.2kw
Power supply voltage 380V/220V, 3phases, for option 380V/220V, 3phases, for option
linear speed 0-200mm/s 0-200mm/s
PLC xinjie xinjie
Production rate 5s/pc for ASME8"150LB 2.5s/pc for ASME8"150LB
Machine measurement 1500*1300*1580mm 1480*1300*1600mm
Machine net weight 800kg 750kg
Products Keywords
Automatic Ring Bending Machine for SWG IR and OR
